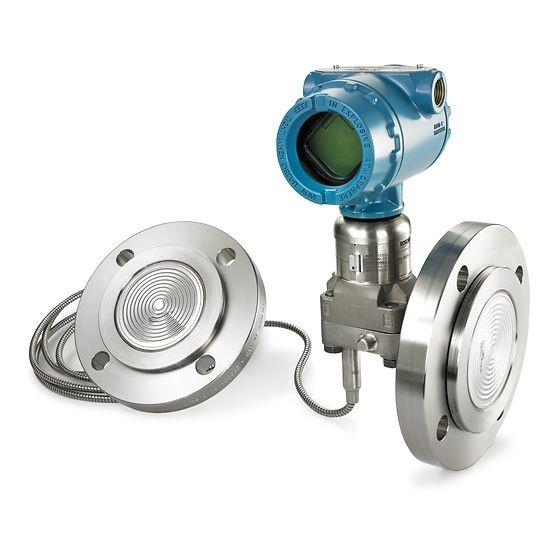

DIN Rail Or Pipe Mount 3051SAL Level Transmitter Liquid Level Measurement

Model Number : 3051S

Certification : IS9001

Place of Origin : Singapore

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T,L/C

Delivery Time : 8 work days

Packaging Details : carton

Operating Temperature : -40 to 85°C

Accuracy : ±0.025% of span

Warranty : 1 year

Power Supply : 10.5-42.4 VDC

Protection Rating : IP66/67

Mounting Type : DIN rail or pipe mount

Measurement Range : 0-10,000 psi

Contact Now

3051SAL Level Transmitter Liquid Level Measurement

Product Description:

The ™ 3051SAL Level Transmitter—a pinnacle of innovation in liquid level measurement technology. This advanced transmitter is meticulously engineered to meet the rigorous demands of industrial environments, offering unparalleled accuracy and reliability for a wide range of applications.At the heart of the ™ 3051SAL lies its cutting-edge WirelessHART® technology, which enables seamless integration into your process control systems. Whether you choose direct installation, split installation, balanced system, or Tuned-System™ components, this wireless device effortlessly adapts to diverse process requirements, ensuring optimal performance every time.


Specifications:

Max.Operating Pressure Up to 10,000psi (689.48 bar)
Process Temperature
Range		 Based on fill fluid-Maximum 770°F (410C),Minimum-157°F(-105°℃)
Communication Protocol 4-20 mA HART®,WirelessHART®,FOUNDATIONFieldbus
Seal System Type Direct Mount, Remote Mount, Tuned-System, Balanced System
Transmitter Connection Welded-Repairable, All Welded
Process Connection Flanged: ANSI/ASME,EN/DIN,GOST, & JIS
Threaded:NPT, DIN,ISO Hygienic
Process Wetted Material 316L SST,Alloy C-276,Alloy 400, Tantalum,Gold-plated Alloy 4O0,Gold-plated 316L SST, see full
specs for complete list of materials
Diagnostics Basic Diagnostics, Loop Integrity,Process Intelligence, Plugged Impulse Line
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party,NACE,3A, hazardous location, see
full specs for complete list of certifications


Features:

  • Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements
  • Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
  • Offers a variety of process connections including flanged, threaded and hygienic seals for application flexibility
  • Welded-repairable construction allows the seal system to be repaired and all welded design provides a robust connection for challenging applications
  • Scaled variable allows transmitter to output level units
  • Remote display offers direct mount process connections with access to transmitter interface at grade
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Advanced diagnostics offer diagnostic coverage to detect electrical loop issues and abnormal process conditions

Good Service:

> Please send your RFQ to get the latest price.
> We will ship the items within 3-5 working days after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so we have good price. If needed, please contact us for specific prices.
